Description

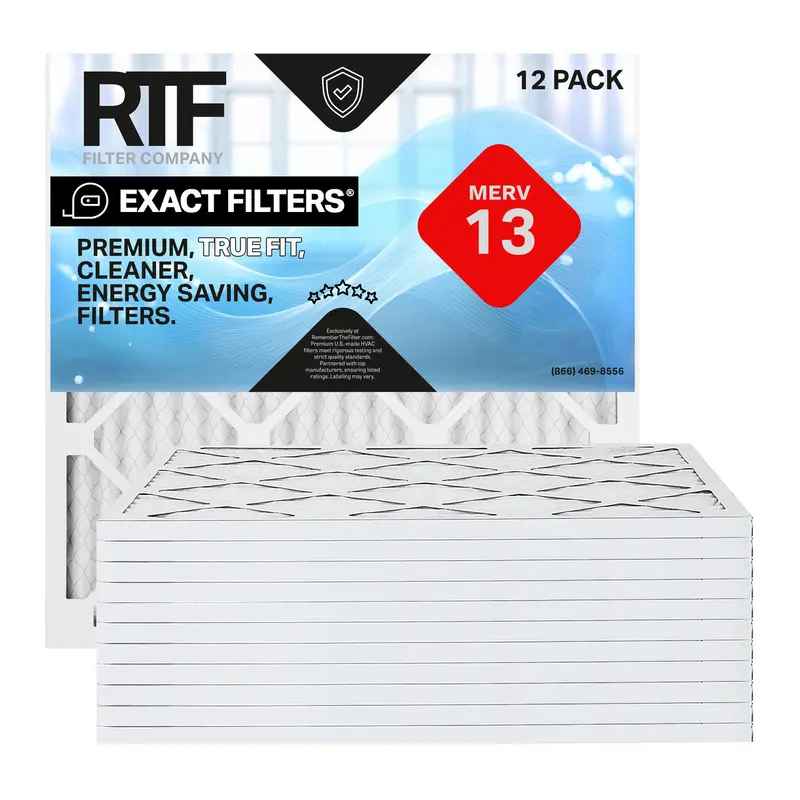

This 29-3/4 x 23-3/4 x 1″ Exact Filters® air filter is manufactured to your exact dimensions, eliminating the guesswork of matching an off-the-shelf filter to a non-standard 29-3/4 x 23-3/4 x 1″ opening.
A properly fitting filter seals against the housing, so all return air is forced through the media instead of leaking around the frame.
MERV 13 targets the fine particulate fraction that lower MERV ratings allow through — including smoke, bacteria-carrying dust, and combustion byproducts. Airflow resistance is higher than MERV 8 or 11, so systems with borderline static pressure should be evaluated before switching up.
Specifications
- Nominal size: 29-3/4 x 23-3/4 x 1″
- Actual dimensions: 29-3/4 x 23-3/4 x 3/4″
- Efficiency rating: MERV 13
- Quantity: 12 filters per carton
Common applications for a 29-3/4 x 23-3/4 x 1″ custom filter include retrofit installations, legacy HVAC systems installed before standard sizes were codified, built-in return grilles that were framed to non-standard dimensions, and commercial unit housings that don’t match any current off-the-shelf size.
Features
- Suitable for forced-air furnaces, central AC, heat pumps, and packaged HVAC systems
- Pleated construction (or fiberglass, depending on MERV tier) designed for balanced capture and airflow
- Orientation arrow printed on the frame to ensure correct airflow direction at install
- Sold as a 12-pack so you have a full year of replacements on hand
Same 29-3/4 x 23-3/4 x 1″ size, different efficiency rating
| MERV 1-4Basic dust-stop | MERV 8Standard efficiency | MERV 11Enhanced efficiency |
|
Need 29-3/4 x 23-3/4 x 2″ or another depth? This size is available in other depths we don’t stock online — reach out and our team will quote it for you, typically same business day.
|
